Introduction to using the EWD
|
Parts
|
|
|
| 1. |
How to read the connector pin number
|

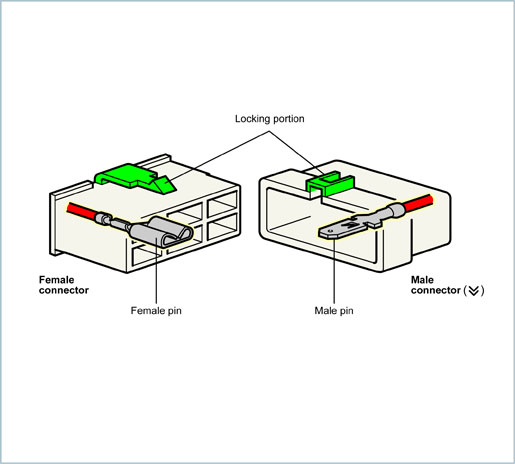

| Connectors include both male and female pins. The male pins are designed to fit into the female pins with sufficient tension to allow a good connection with minimal contact resistance. The connectors are also identified as male and female, based on the type of pins within the connector. All connectors have locking devices to ensure the connectors are securely connected. |
|
(10)
|
|
