Disassembly

Remove Alternator Rotor Assembly
Click on the underlined sentence.
Rotor
Drive end frame
Cloth
Hammer
Since the rotor bearing is pressed into the end frame, it needs to be removed using the SST.

  1. Remove rear end frame
    Correctly locate the claws of the SST when removing the rear end frame.

2. Remove alternator rotor assembly

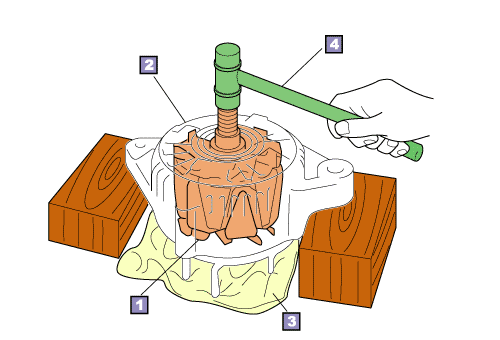

    Remove the rotor from the drive end frame bearing by tapping the rotor shaft with a plastic hammer.
NOTICE:
During removal support the rotor to prevent it droping and causing damge.

(35/1)
