Refrigeration System
|
|
Compressor (Reference)
|
|
|
|
|
| 1. |

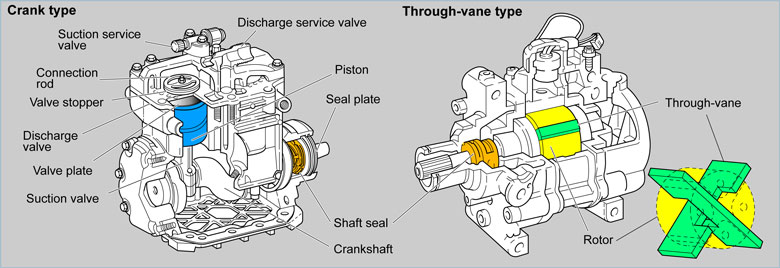

Crank type
|
| In the reciprocating compressor, the rotation of the compressor crankshaft is changed to the reciprocating movement of a piston. |
| 2. |
Through-vane type
|
| Each vane of the through-vane compressor forms an integral component with its opposite. There are two such vane pairs, each mounted at right angles to the other in slots in the rotor. As the rotor turns, the vanes shift in the radial direction as their ends slide across the inside surface of the cylinder. |
|
(22)
|
|
