Wobble plate type compressor
|
| (1) |

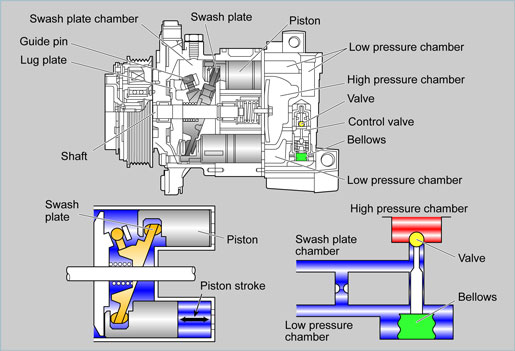

Construction
|
| As the drive shaft turns, the guide pin rotates the swash plate via the lug plate that is directly connected to the shaft. This rotational movement of the swash plate is turned into the reciprocal movement of the piston in the cylinder (compressor housing) to perform the intake, compression and discharge of the refrigerant. |
| (2) |
Operation
|
|
|
