Temperature control
|

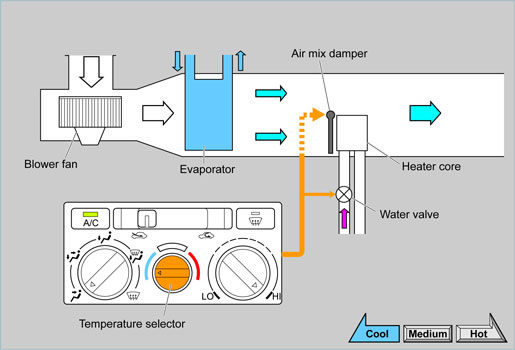

The A/C system regulates the cabin temperature by using both the heater core and evaporator and by adjusting the position of the air mix damper and the water valve. The air mix damper position and the water valve operation are controlled by the temperature selector in the control panel.
HINT:
Most recent new models are designed without a water valve in the heating system. |
|
