Installation

Charge Refrigerant

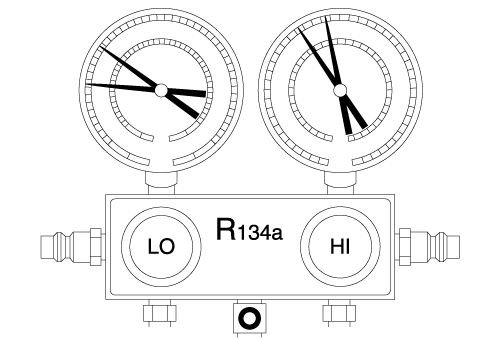

(3) ICheck the refrigerant charge amount according to the pressure indication of the manifold gauge.
Specified pressure indication:
 •
Low-pressure side

0.15-0.25 MPa (1.5-2.5kgf/cm²)
 •
High-pressure side

1.37-1.57 MPa (14-16 kgf/cm²)
HINT
The pressure indication of the manifold gauge may vary slightly depending on the outside air temperature

(57)
