Installation

Charge Refrigerant
Click on the underlined sentence.

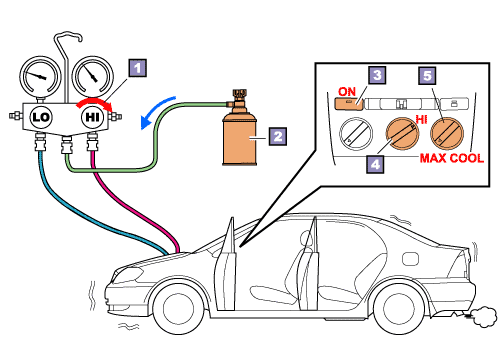

High side closed
Bulk refrigerant
A/C switch
Blower speed control
Temperature selector
4.Charge on low-pressure side
If complete charging is not possible via the high side add any remaining refrigerant via the low side
(1) IAfter checking that the high-pressure side valve is closed, start the engine and operate the air conditioner.
  (2) Open the low-pressure side valve of the manifold gauge and continue charging to the specified amount of refrigerant.
Charging conditions
 •
Engine running at 1500 rpm
 •
Blower speed control switch at "HI"
 •
A/C switch ON
 •
Temperature selector at "MAX COOL"
 •
Fully open all doors
