Reassembly

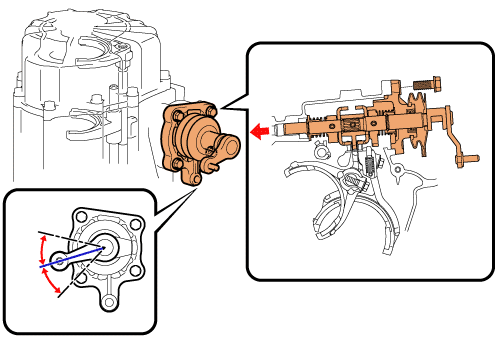

Install Shift and Select Lever Shaft
1.
Confirm that the shift fork shafts are in the neutral position.
2. Shift the shift and selector lever shaft to the neutral position and insert it straight into the transaxle through a new gasket.
NOTICE:
Be careful not to damage or bend the gasket. Using damaged gaskets causes oil leaks.

3.
Clean the bolts and apply lock adhesive. Then install and tighten the bolts.


(29)
