Seal packing |
|
|
Transmission case cover |
|
|
Transmission case |
|
|
|

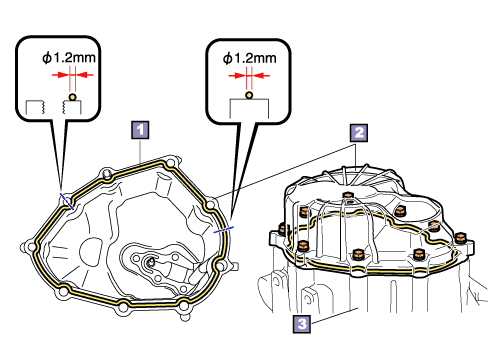

| Apply seal packing to the case cover
fitting surface and attach it to the transmission case. |
| 1. |
Use a scraper to clean the entire case cover
fitting surface.
|
| |
| 2. |
Then, in one continuous motion, apply
a line of seal packing to the fitting surface approximately 1.2 mm in diameter. |
| |
| 3. |
Make sure of the installation direction of
the transmission case, align the knock pin with the bolt hole and install them
together.
|
| 4. |
Clean the bolts and apply lock adhesive. Then
install and tighten the bolts.
|
| |
|
