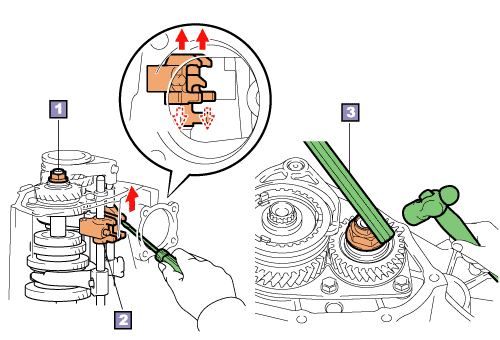

New output shaft lock nut |
|
|
Shift fork shaft |
|
|
Chisel |
 |
Slide the shift fork shaft |
 |
|
|
|
| 1. |
Lock shaft |
| To tighten the new output shaft lock nut, mesh
two gears together to prevent it from rotating. This is done by using a screwdriver
to slide both shift fork shafts upward or downward. |
| |
| 2. |
Install lock nut |
| Use new lock nuts to fasten the shaft. |
| HINT: |
|
•
|
This task should be performed by two people because of the
strong torque. |
|
•
|
Disengage the gears after tightening the lock nut. |
| |
| 3. |
Stake lock nut |
| Use a hammer and chisel to stake
the lock nut. |
| |
|
