Hub sleeve |
|
|
Clutch hub |
|
|
Shifting key |
|
|
Shift fork |
|
|
|
|
1.
|

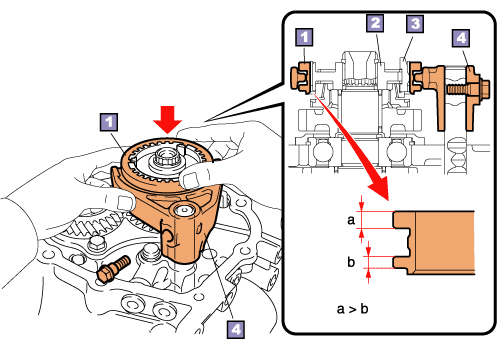

Install shift fork
and hub sleeve |
| Make sure of the installation
direction of the shift fork and that of the hub sleeve, group the shift fork with
the hub sleeve, and install them on the clutch hub and shift fork shaft. Then
install the bolt on the shift fork shaft. |
|
HINT:
When installing the hub sleeve, install straight
and slowly so that the shifting key of the clutch hub does not become separated.
|
| |
|
2.
|
Install shift fork
bolts |
| Clean the shift
fork bolt and apply lock adhesive. Then install and tighten the
shift fork bolt. |
| |
|
