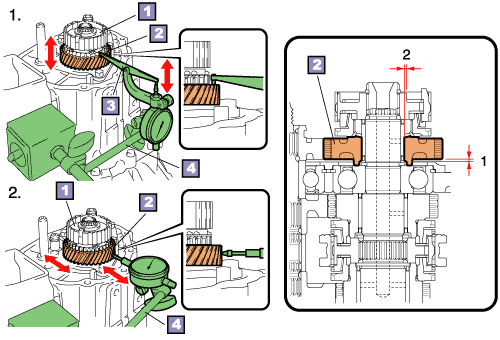

Clutch hub |
|
|
5th gear |
|
|
Lever type probe |
|
|
Dial gauge |
|
|
|
|
Use a dial indicator to measure the gear clearance.
|
| |
|
5th gear clearance
|
|
1.
|
Measure thrust clearance
|
| 2. |
Measure radial clearance
|
| |
|
HINT:
If there is not enough gear clearance, the
gears will not be lubricated properly; likewise, if the clearance is too large,
the gears will jump out and the unit will generate abnormal noise.
|
|
