Reassembly
Install Snap Rings
Click on the underlined sentence.
Snap ring expander
Input shaft
Output shaft

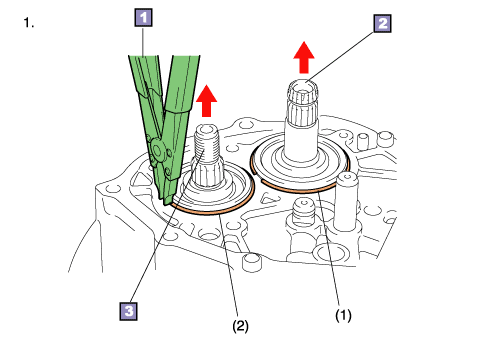

Procedures for installing the snap rings differ according to their shapes and positioning.
1.
Use a snap ring expander to install the following:
(1)
Input shaft snap ring
(2)
Output shaft snap ring
HINT:
Performing the procedure with the shaft being pulled upward by hand makes the installation easier.
2.
Use a brass bar and hammer to install the shift fork shaft snap ring.
