Reassembly

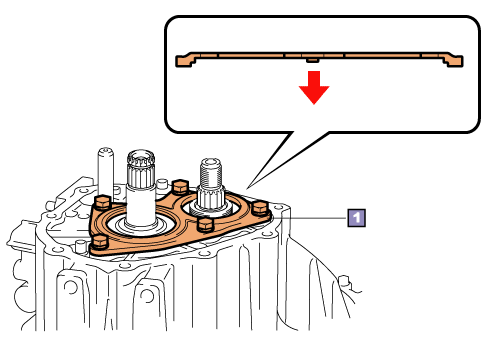

Install Bearing Retainer

Bearing retainer

1.
Check that the retainer is facing in the right direction. Align the bolt holes with the transmission case and fit the bearing retainer.
2.
Clean the bolts and apply lock adhesive. Then install and tighten the bearing retainer mounting bolts.


(20)
