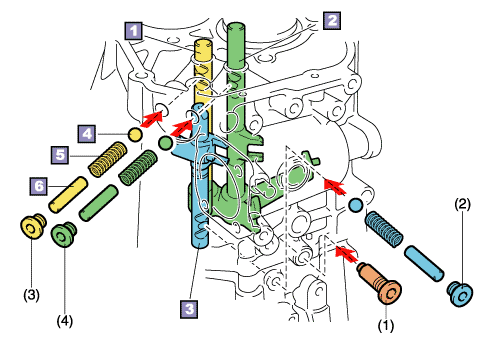

Gear shift fork shaft No.2 (3rd and 4th gears) |
|
|
Gear shift fork shaft No.3 (5th and reverse gears) |
|
|
Gear shift fork shaft No.1 (1st and 2nd gears) |
|
|
Shift detent ball |
|
|
Spring |
|
|
Spring seat |
|
|
|
|
1.
|
Install the shift detent balls, springs and
spring seats in the transmission case.
|
|
2.
|
Clean the shift detent plugs
and apply lock adhesive.
|
|
3.
|
Use a hexagon wrench
to tighten the following plugs and lock ball on the transmission
case: |
|
(1)
|
Lock ball assembly |
| (2) |
Shift detent plug (1st
and 2nd gears) |
| (3) |
Shift detent plug (3rd
and 4th gears) |
| (4) |
Shift detent plug (5th
and Reverse gears) |
| |
HINT:
Tighten plugs while lightly pressing the hexagon
wrench to prevent damage to the hexagonal hole. |
|
