Disassembly

Disassemble Clutch Hub
Click on the underlined sentence.
Clutch hub
Hub sleeve
Shifting key
Key spring
Cloth
1. Verify hub sleeve and clutch hub positioning

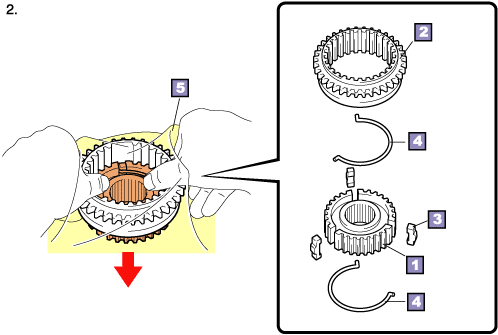

  2. Remove hub sleeve
Cover the clutch hub assembly with a cloth to prevent the shifting keys and key springs from spinning out.

HINT:
•
On a C-type transaxle, the reverse gear and hub sleeve are combined into one unit.
•
Do not take the hub sleeve and clutch hub apart when removing the clutch hub unit.
