Disassembly
Inspect Gear Clearance
Click on the underlined sentence.
1st gear
2nd gear

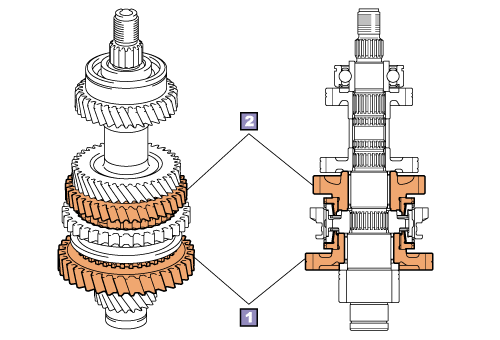

Before disassembling the output shaft, use either a thickness gauge or a dial gauge to measure the gear clearance.
1.
1st gear clearance
2.
2nd gear clearance
