2.
|
Installing drive shaft
|
|
(1)
|
Apply gear oil to the spline on the inboard
joint side and then engage the drive shaft with the transaxle spline.
|
HINT:
Direct the opening side facing of the drive shaft snap rings
downward. |
| |
|
(2)
|

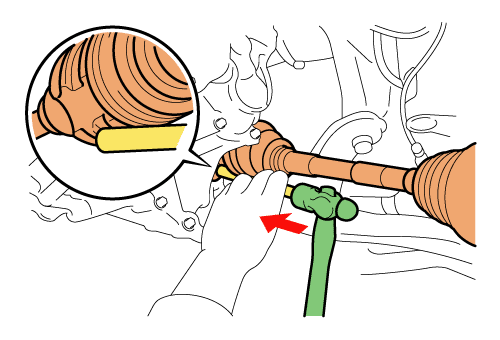

Bring the brass bar into contact with the drive shaft groove and then insert this shaft into the transaxle by tapping the brass bar with a hammer.
|
| |
HINT:
Whether the drive shaft has been completely inserted can be judged by confirming whether there is a change in the reaction of the brass bar when hit or in sound quality. |
