(3)
|

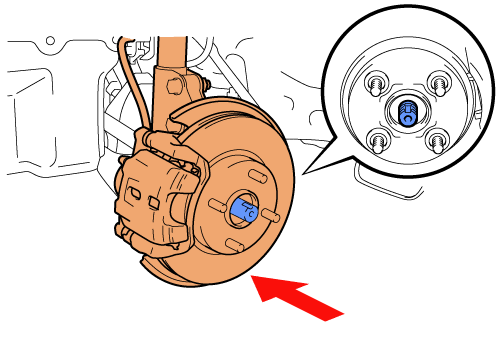

Pulling the axle hub lightly towards the vehicle
exterior, fit the splines of both the drive shaft and the axle hub, and then insert
the drive shaft into the axle hub.
|
|
NOTICE:
|
|
•
|
Do not pull the axle hub towards the vehicle
exterior more strongly than necessary.
|
|
•
|
Do not damage the boots of the drive shaft and
the rotor of the speed sensor.
|
HINT:
Make sure the staking groove on the driveshaft is positioned between the wheel studs on the hub to make the lock nut easier to stake. |
| |
|
(4)
|
Connect the lower arm to the axle hub.
|
| |
|
(5)
|
Install the ABS speed sensor.
|
