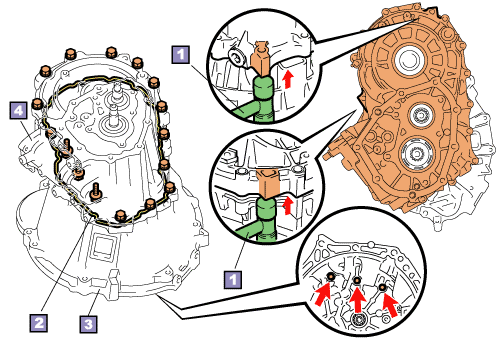

Plastic hammer |
|
|
Seal packing |
|
|
Transaxle case |
|
|
Transmission case |
|
|
|
|
The transmission case is bonded to the transaxle
case with seal packing.
|
| |
|
1.
|
Remove transmission case cover bolts
|
|
To distribute the tension evenly when removing
the transmission case cover bolts, loosen the bolts in a diagonal sequence.
|
| |
|
2.
|
Remove transmission case
|
|
First loosen the transmission case by tapping
the ribs of transmission case with a plastic hammer. Then remove the transmission
case.
|
|
