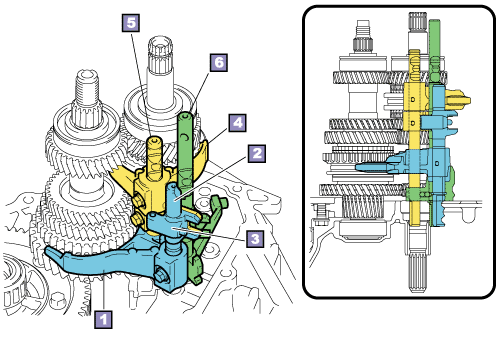

Gear shift fork No.1 (1st and 2nd gears) |
|
|
Gear shift fork shaft No.1 (1st and 2nd gears) |
|
|
Gear shift fork head No.1 (3rd and 4th gears) |
|
|
Gear shift fork No.2 (3rd and 4th gears) |
|
|
Gear shift fork shaft No.2 (3rd and 4th gears) |
|
|
Gear shift fork shaft No.3 (5th and reverse gears) |
|
|
|
|
The shift lever initiates the shift fork shaft
and shift fork causing the hub sleeve to slide and engages the gears.
|
| |
|
1.
|
Check positioning
|
|
The shift fork and shift fork shaft both have
a direction. Make sure to note these positions carefully before disassembling
these units.
|
|
