1.
|

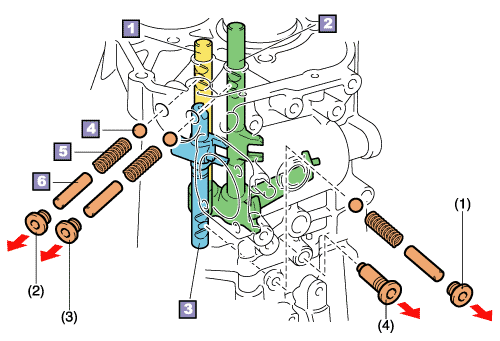

Use a hexagon wrench to remove the following
shift detent plugs and lock ball from the transmission case: |
| (1) |
Shift detent plug (1st and 2nd gears) |
| (2) |
Shift detent plug (3rd and 4th gears) |
| (3) |
Shift detent plug (5th and reverse gears) |
| (4) |
Lock ball assembly |
| |
HINT:
Loosen plugs while lightly pressing the hexagon wrench to
prevent damage to the hexagonal hole. |
| |
|
2.
|
Using a magnet hand, remove the spring seats,
springs and shift detent balls.
|
| |
|
Function of shift detent ball
|
| When shifting gears, a spring pushes
the detent ball into the groove on the shift fork shaft. This assists in maintaining
correct gear-shift positioning while preventing jumping out of gear, and leads
to a feeling of restraint when shifting. |
| |
| Function of lock ball assembly |
| Prevents the reverse idler gear from
moving when the transmission is not shifted into reverse. |
