Disassembly
Disassemble Clutch Hub
Click on the underlined sentence.
Clutch hub assembly
Shifting key
Clutch hub
Key spring

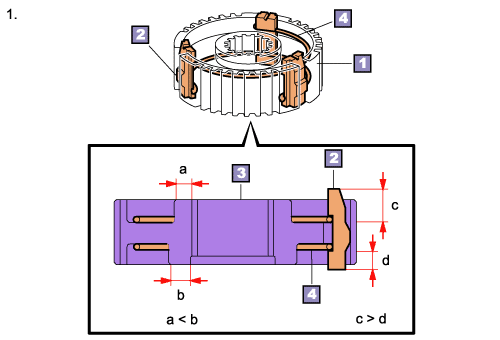

1.
Check positioning
The clutch hub and shifting key both have a direction. Make sure to note these positions carefully before disassembling this unit.
2.
Remove key spring
(14)
