Disassembly

Disassemble Clutch Hub
Click on the underlined sentence.

Shifting key
Clutch hub
Key spring
Cloth

1.
Check positioning

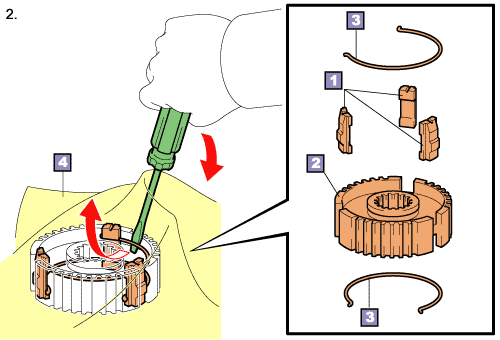

2.
Remove key spring
Cover the clutch hub with a cloth to prevent the key springs and shifting keys from spinning out.
Then pry off key springs with a flat-head screwdriver.

HINT:
Store the clutch hub and shifting key together as a unit.

(14)
