Disassembly
Remove Clutch Hub and Gear
Click on the underlined sentence.

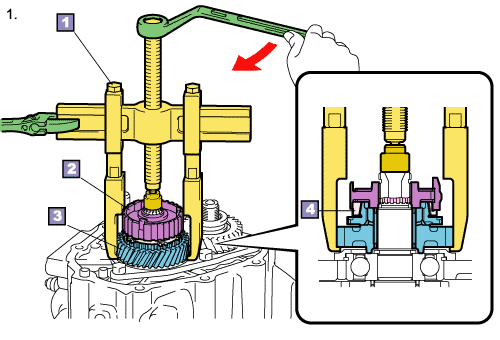

SST (Puller B set)
Clutch hub
5th gear
Synchronizer ring
1.
Remove 5th gear and clutch hub
Use SST to remove the clutch hub, synchronizer ring and 5th gear.
2.
Remove 5th driven gear
Use SST to remove the 5th driven gear.
HINT:
Place right and left SST arms evenly against the gears to hold the claws not open.
(13)
