Disassembly
Remove Snap Rings
Click on the underlined sentence.
Cloth
Clutch hub
5th gear
Procedures for removing snap rings differ according to their shape and positioning.

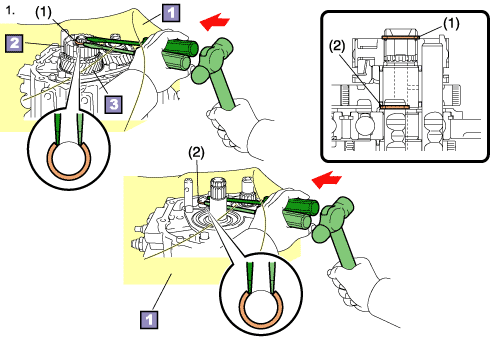

1.
Use a penetration screwdriver and hammer to remove the following:
(1)
Clutch hub snap ring
(2)
Shift fork shaft snap ring
2.
Use a snap ring expander to remove the following:
(12)
