Disassembly

Remove Snap Rings
Click on the underlined sentence.
Snap ring expander
Input shaft
Output shaft

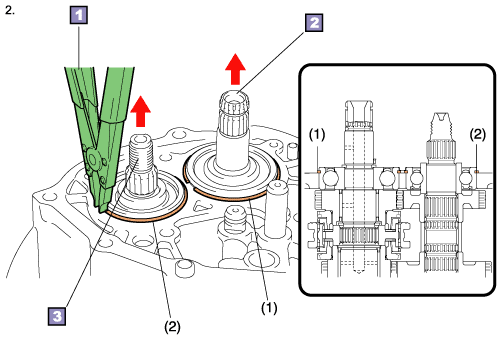

Procedures for removing snap rings differ according to their shape and positioning.

1.
Use a penetration screwdriver and hammer to remove the following:


2.
Use a snap ring expander to remove the following:

(1)
Input shaft snap ring
  (2) Output shaft snap ring

HINT:
Performing the procedure with the shaft being pulled upward by hand makes the removal easier.
