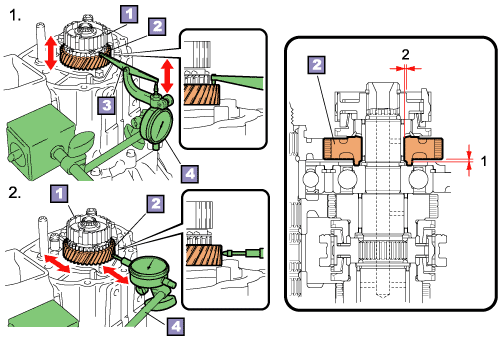

Clutch hub |
|
|
5th gear |
|
|
Lever type probe |
|
|
Dial gauge |
|
|
|
|
Before disassembling the transaxle, use a dial
gauge to measure the gear-shaft clearance.
|
| |
|
5th gear clearance
|
|
1.
|
Measure thrust clearance
|
|
2.
|
Measure radial clearance
|
| |
HINT:
If there is not enough gear clearance, the gears will not
be lubricated properly; likewise, if the clearance is too large, the gears will
jump out of engagement and the unit will generate abnormal noise. |
|
