Disassembly

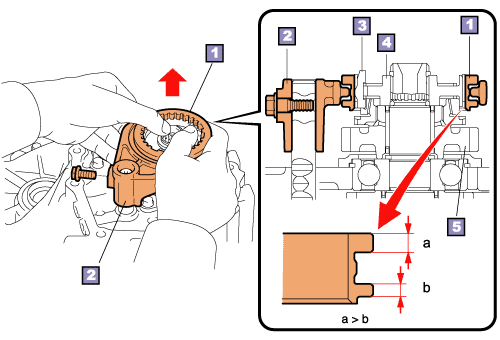

Remove Shift Fork No.3 and Hub Sleeve
Hub sleeve
Shift fork No.3
Shifting key
Clutch hub
5th gear

The shift fork and hub sleeve have a direction. Make sure to note the correct positioning before removing the shift fork and hub sleeve.
Remove the bolt, and then remove the shift fork and hub sleeve as one unit.

HINT:
Store the shift fork and hub sleeve so that they are kept as a unit.

(10)
