Reassembly
Install Differential Ring Gear
Click on the underlined sentence.
Ring gear
2.
Install ring gear
(1)
Clean the differential ring gear.
(2)

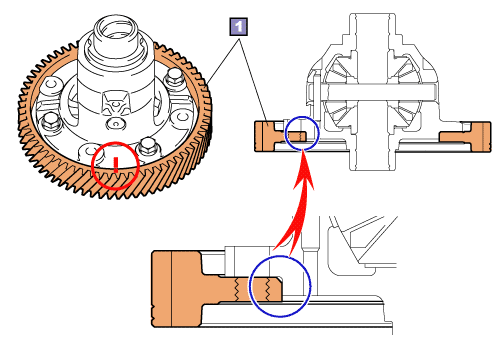

Aligning both matchmarks, quickly install the differential ring gear and bolts on the differential case.
HINT:
Install the ring gear with the larger side of the chamfering width in the inner circumference direction on the differential case.
(14)
