Reassembly

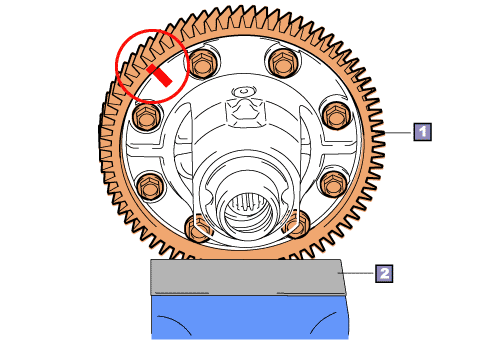

Install Differential Ring Gear
Click on the underlined sentence.
Ring gear
Aluminium plate
3.
Tighten ring gear set bolts
(1)
So as not to move the ring gear, hold it in a vise between aluminium plates.
NOTICE:
Do not tighten the vise excessively.
(2)
To distribute the tension evenly when tightening the bolts, tighten the bolts in a diagonal sequence, rotating each bolt a little at a time.
REFERENCE:
•
Using a lock plate
(15)
