Reassembly

Install Differential Ring Gear

Ring gear
Heater

1.

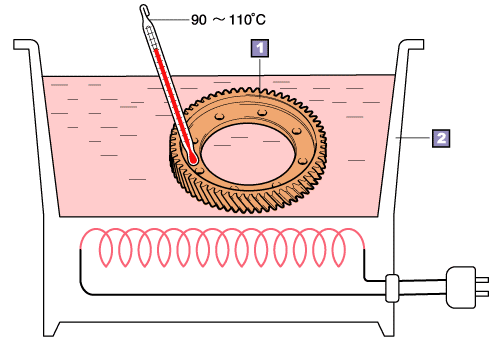

Heat ring gear
Use a heater to warm the ring gear to 90 - 110°C (194 - 230°F)

HINT:
Once heated, the entire ring gear expands. Accordingly, the ring gear's inner diameter is enlarged making it easier to fit the ring.
Use a piece of wire to carefully lift the ring gear out from the heater.

(13)
