Removal

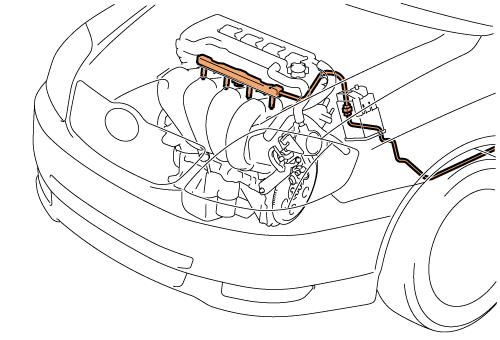

Disconnect Fuel Line
Click on the underlined sentence.
1.
Disconnect fuel line
There are several kinds of fuel line joints. The appropriate method for each must be used to disconnect them.
(1)
Quick connector type
•
Using SST type
•
Connector type
(2)
Union type
CAUTION:
Some fuel pressure remains in the fuel line, so cover the connector with a cloth to remove the connector.
2.
Prevent fuel leak
Cover the pipe with a plastic bag to prevent fuel leaks and keep out foreign matter.
CAUTION:
It is very dangerous to continue operation without the ends of fuel line being blocked, which will leak and could result in fire.
