Removal
|
Disconnect Connectors and Wire Harness
|
|
|
| The engine has many connectors, such as the sensor connector, switch connector, and
actuator connector. These connectors are connected to the engine wire. Disconnect the engine wire connectors from their connections
at the engine ECU and engine room junction block, not from the engine, and minimize the number of disconnections. |
| |
| 1. |

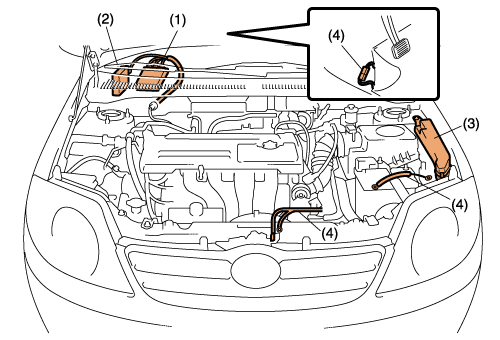

Disconnect the engine wire connectors from the following parts: |
| (1) |
Engine ECU |
| (2) |
Instrument panel junction block |
| (3) |
Engine room junction block |
| (4) |
Others |
| • |
Ground wire |
| • |
Starter cable |
| • |
Oxygen sensor connector |
| |
| HINT: |
| For the oxygen sensor, the connector is under the floor carpet. |
| |
|
|
