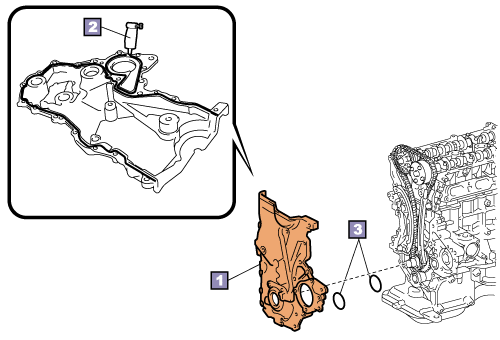

Timing chain cover |
|
|
Seal packing |
 |
O-ring |
|
|
|
| The timing chain cover is installed
using seal packing. |
| The following instructions and procedure
are for applying and handling the seal packing. |
| For information regarding the seal
packing application areas and application amount (thickness), refer to the Repair
Manual. |
| 1. |
Clean the adherence surface |
| |
| 2. |
Apply the seal packing |
|
| |
| 3. |
Install the timing chain cover |
|
|
