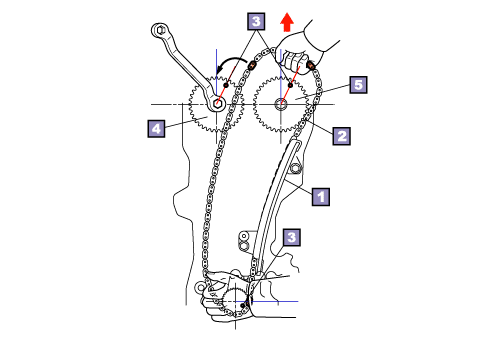

Chain vibration damper |
|
|
Timing chain |
|
|
Timing mark |
 |
Exhaust camshaft timing sprocket |
 |
Intake camshaft timing sprocket |
|
|
|
|
2.
|
Install timing chain damper
|
| |
| 3. |
Install timing chain |
| |
Place the chain in order on the camshaft and crankshaft sprockets
while pulling on the chain from the timing chain damper side. |
| |
| HINT: |
| • |
To prevent the exhaust camshaft from springing back, turn it
using a wrench and set it at the mark on a chain. |
| • |
If the chain and sprocket lobe are offset a little, rotate
the camshaft to align them. |
|
