Reassembly
Install Timing Chain
Click on the underlined sentence.

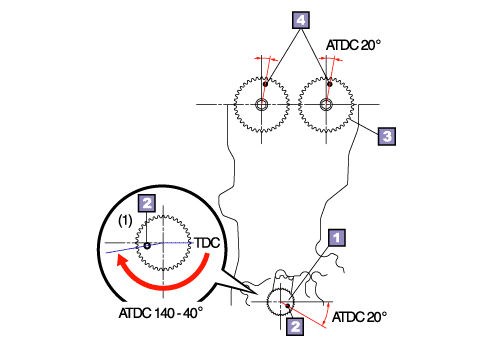

Crankshaft timing sprocket
Crankshaft timing sprocket timing mark
Camshaft timing sprocket
Camshaft timing sprocket timing mark
1.
Set timing mark potion
(1)
Set the crankshaft of timing at No.1 cylinder ATDC (After Top Dead Centre)/Compression 40-140 degrees.
(2)
Set the camshaft of the intake and exhaust timing sprockets at No.1 cylinder ATDC/Compression 20 degrees.
(3)
Reset the crankshaft of timing at No.1 cylinder ATDC/Compression 20 degrees.
NOTICE:
Be sure to align the timing mark in the above procedure. Otherwise the valve and piston could interfere with each other.
HINT:
The position of the timing mark varies depending on the vehicle model. Refer to the Repair Manual.
