Bolt |
|
|
Retainer |
|
|
Nut |
|
|
Collar |
|
|
Clip |
 |
Apply grease |
|
|
|
|
1.
|
Install shift lever
(FR models) |
| (1) |
Apply grease to the tip of the shift lever (collar section). |
| (2) |
First verify the directional positioning of the shift lever
and then install it on the transmission. |
| (3) |
Fasten the shift lever. |

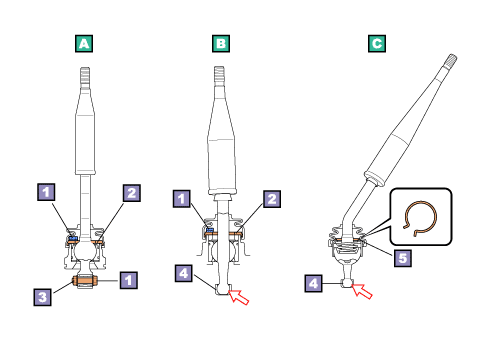

| Note that there are three types of
shift levers: |
 Fastened
with bolts, nut |
| |
and retainer |
 Fastened
with bolts and |
|
|
retainer |
|
|
Fastened with clip |
| |
| 2. |
Refit the centre console |
|
