| 2. |
Installing drive shaft
|
| (1) |

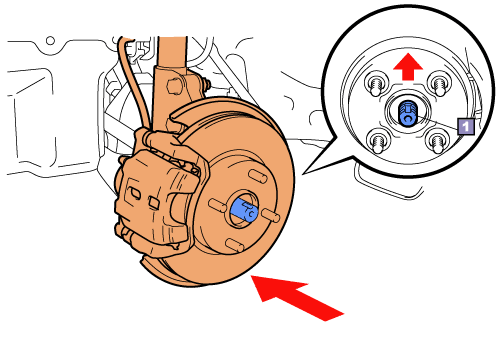

Pulling the axle hub lightly towards the vehicle
outside, fit the splines of both the drive shaft and the axle hub, and then insert
the drive shaft into the axle hub.
|
NOTICE:
|
|
|
•
|
Do not pull the axle hub towards the vehicle outside more strongly than necessary. |
|
•
|
Do not damage the boots of the drive shaft and the rotor of the speed sensor.
|
|
HINT:
Move the staking groove of the drive shaft and the position
of the hub bolt to make the lock nut easy to stake. |
| |
| (2) |
Connect the lower arm to the axle hub.
|
| (3) |
Install the ABS speed sensor. |
