Collar |
|
|
Alternator |
|
|
Bracket (Engine side) |
 |
Through bolt (A) |
 |
Bolt (B) |
|
|
| 3. |

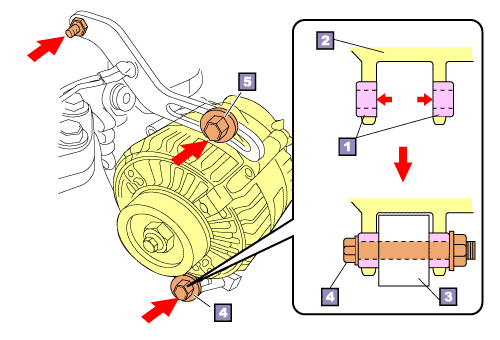

Install alternator |
| (1) |
Slide the collar until the surface
becomes flush with the bracket (fitting side). |
HINT:
Slide the collar at the alternator installation part outward
with a hammer and a brass bar to install the alternator. |
| |
| (2) |
Install the alternator temporarily
by passing it through the mounting through bolt (A). |
| |
| (3) |
Temporarily install the bolt (B). |
|
