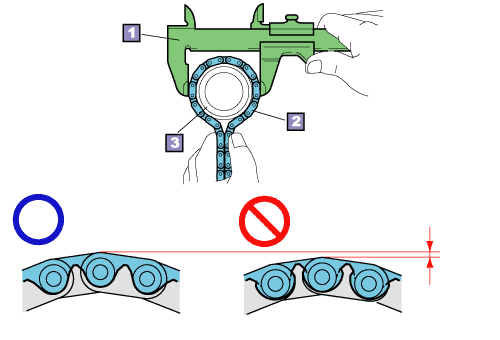

Vernier calipers |
|
|
Timing chain |
|
|
Sprocket |
|
|
|
| Sprocket wear occurs between the teeth of the
sprocket. |
| |
| Sprocket wear causes the chain to rest too deeply
on the sprocket, reducing the outside diameter of the chain when it is mounted
over the sprocket. |
| |
| Therefore, mount the chain over the sprocket and
then measure the outside diameter of the chain to judge whether the sprocket is
normal. |
| |
| Allowing the sprocket wear to progress may cause
tooth missing or tooth skipping due to the loose chain, which may result in damage
to the valve mechanism. |
|
