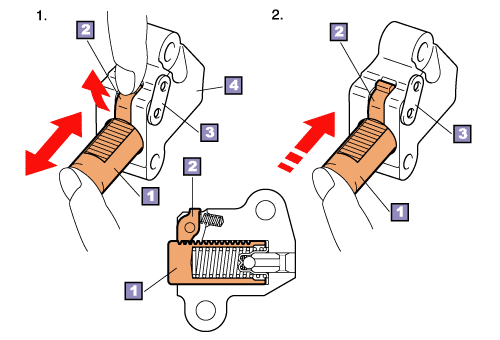

Plunger |
|
|
Ratchet pawl |
|
|
Stopper plate |
 |
Chain tensioner |
|
|
|
| If there is trouble with
the chain tensioner, it will no longer be possible to apply tension
to the timing chain, which will cause the timing chain to become
loose and cause skipping, which could damage the valve mechanism. |
| |
| 1. |
When raising the ratchet pawl, check that the
plunger can be moved by finger. |
| 2. |
When moving the ratchet pawl back, check that
the plunger locks. |
| |
| HINT: |
|
•
|
Make sure that the plunger moves
smoothly without resistance. |
|
•
|
Replace the tensioner if it malfunctions. |
|
