Disassembly

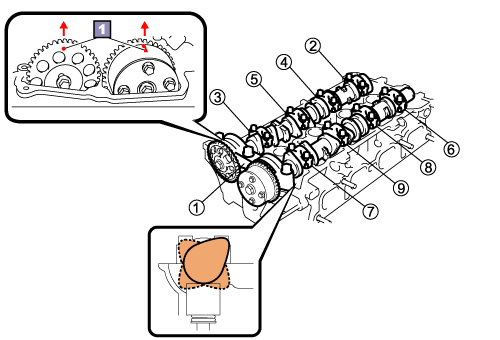

Remove Camshaft
Click on the underlined sentence.
to
is the removal order of the bearing cap.
Timing mark
1.
Set camshaft position bolts
(1)
Set the camshaft position so that the valve spring force is uniformly applied to the camshaft and where it can be most easily lifted out.
HINT:
The camshaft setting position differs according to the particular type of engine. Refer to the Repair Manual for further details.
2.
Remove camshaft
Back to Components page
(7)
to
is the removal
order of the bearing cap.
