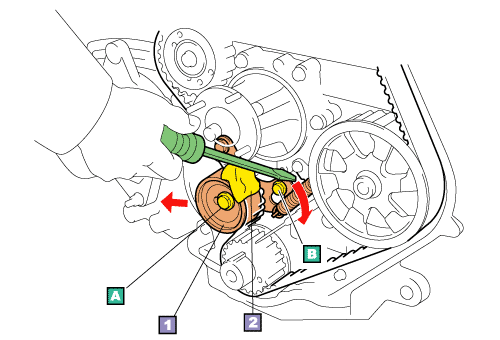

Timing belt tensioner |
|
|
Cloth |
|
|
|
| The timing belt tensioner uses a spring or an automatic tensioner ( which is reset after removal) to apply tension to the timing belt. |
| |
| Tension release method -spring type |
| (1) |
Loosen the bolts
and  . |
| (2) |
Push the pulley in the direction where the belt is not mounted and temporarily tighten the bolt . |
| (3) |
Tighten the bolt
loosely to hold the tensioner in place. |
| |
| NOTICE: |
| Wrap a cloth or other material around the belt tensioner to keep it from being damaged. |
|
