Disassembly
Remove Timing Chain
Click on the underlined sentence.

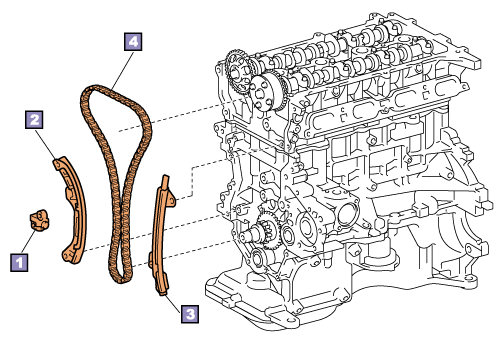

Chain tensioner
Chain tensioner slipper
Chain vibration damper
Timing chain
1.
Remove chain tensioner (auto tensioner)
REFERENCE:
•
Timing belt tensioner
2.
Remove chain tensioner slipper
3.
Remove chain vibration damper
Back to Components page
