Engine Disassemble 04

PRO TECHNICIAN

Disassembly

Remove Timing Chain Cover

Click on the underlined sentence.

	Timing chain cover
	Tape

	1.	Remove cylinder head cover and gasket

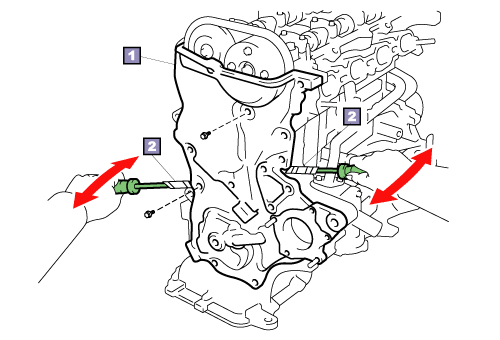

	2.	Remove timing chain cover
	(1)	Remove all bolts and nuts.
	(2)	Insert a flat-head screwdriver between the chain cover and the cylinder head and block. After that pry off the chain cover.
