| Sequentially install the valves, in their original
pre-removal positions. |
| |
|
1.
|
Coat the valve stem with the required engine
oil and insert the stem from the combustion chamber into the valve guide.
|
| |
|
2.
|
Make sure that the valve moves smoothly.
|
| |
|
3.
|
Install the spring and retainer.
|
| |
|
4.
|

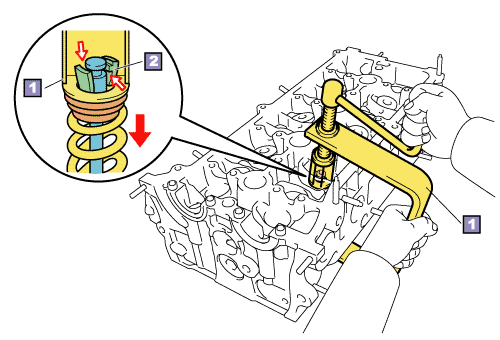

Set SST so that it is straight with respect
to the valve.
|
| |
|
5.
|
Tighten SST until the keeper is installed.
|
| |
|
6.
|
To prevent the keeper from falling out, thinly
apply grease to the inside of the keeper and install it in the valve.
|
| |
| 7. |
Remove SST. |
