Inspection

Inspect Clearance

Click on the underlined sentence.
Dial gauge
Camshaft
There are several oil clearance measurement positions on the cylinder head.
1. Valve guide bushing oil clearance
2. Valve lifter oil clearance

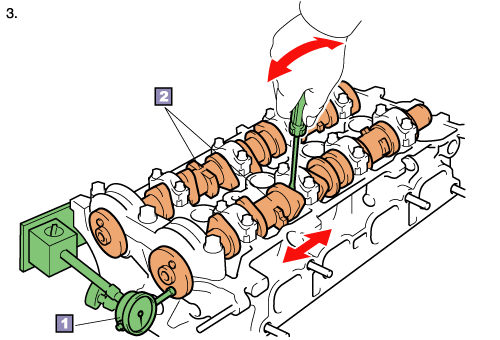

3. Camshaft thrust clearance
  Use a dial gauge and flat-head screwdriver to measure the thrust clearance.

4. Camshaft oil clearance

(11)
