Oil loss via valve guide occurs |
 |
Oil loss via position ring occurs |
|
|
|
| 1. |
Visual inspection |
| Visually check how much carbon has
adhered to the bottom of the valve and check whether the oil loss is via the piston
ring or that of the valve guide. |
| |
| HINT: |
| • |

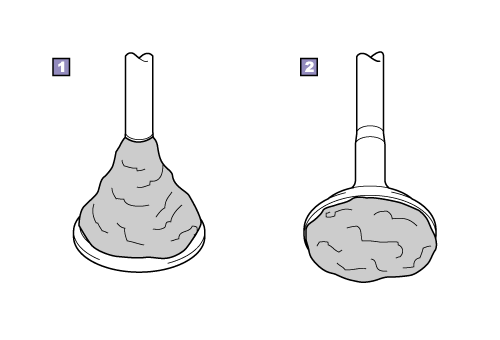

If carbon has adhered to the lower surface of the valve, oil has been lost via the piston ring, so check the piston clearance and piston ring. |
| • |
If carbon has adhered to the upper surface of valve, oil loss
via the valve guides occurs, so check the valve guide bushing oil clearance. |
|
