Reassembly

Reassemble Piston
Click on the underlined sentence.

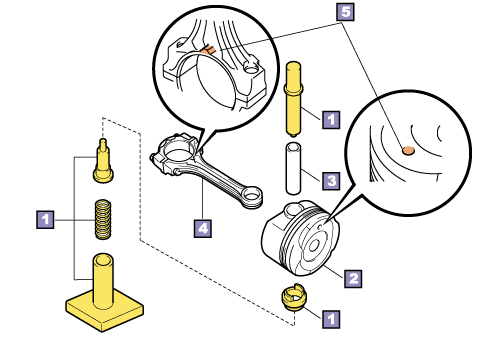

SST (Piston pin remover & replacer)
Piston
Piston pin
Connecting rod
Front mark

1. Reassemble piston and connecting rod
  (1) Align the front marks of the piston and the connecting rod.
  (2) Set the piston, the piston pin, and the connecting rod in SST, and use a press to insert the piston pin.

NOTICE:
If SST and piston are slanted, the piston could crack.

(18)
